The vehicle

The new AKD Jaguar D‑Type replica from AK Sportscars represents one of the most faithful and technically sophisticated recreations yet offered of Jaguar’s legendary 1950s endurance racer. Built either as a factory‑finished car or as a self‑assembly project, the AKD combines period‑correct aesthetics with thoroughly modern engineering, creating a machine that captures the spirit of the original while delivering reliability and usability suited to contemporary roads.

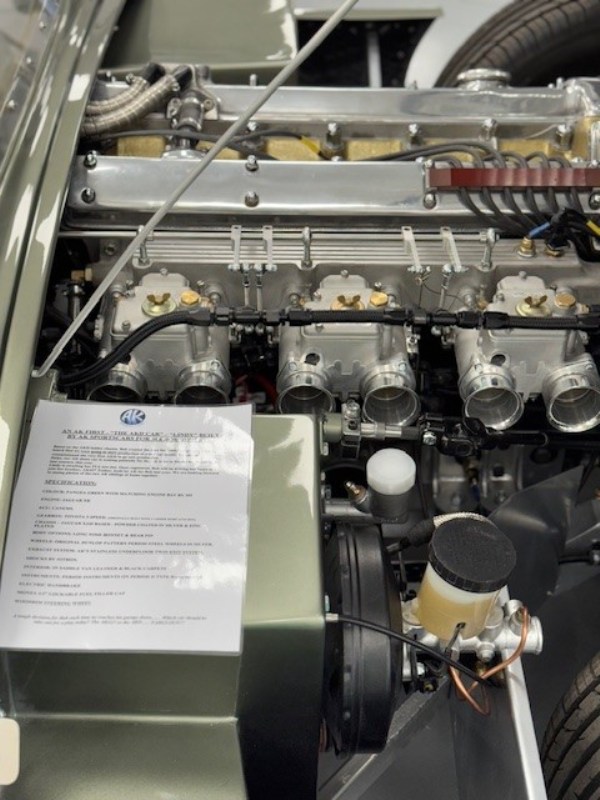

At the heart of the AKD is a refurbished and fully rebuilt Jaguar XK straight‑six, equipped with modern ignition, a Canems ECU and, in some builds, Jenvey injection throttle bodies for crisp throttle response. Power is delivered through a Toyota five‑speed gearbox and a balanced propshaft, giving the car a more flexible and tractable driving experience than the original four‑speed racing units. The running gear is sourced from reconditioned Jaguar XJ40 components, including a rebuilt 3.27 differential, with a power‑lock option available.

The chassis is a ladder‑type design with partial backbone reinforcement, powder‑coated for durability. Suspension is handled by Gaz dampers as standard, with Nitron units available for those seeking sharper track‑focused dynamics. Braking is via a dual‑circuit servo‑assisted system with vented front discs, ensuring modern stopping performance.

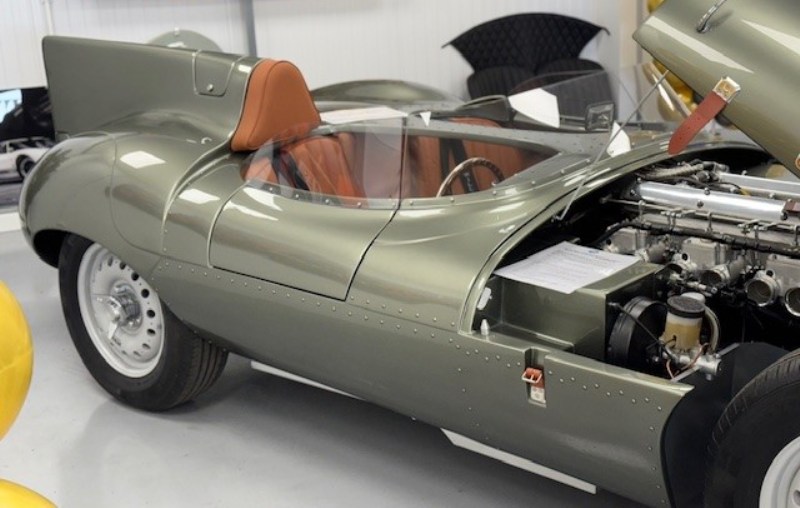

Visually, the AKD is strikingly authentic. The hand‑laid GRP body can be specified with either long‑nose or short‑nose front sections and with the iconic D‑Type fin or hump at the rear.

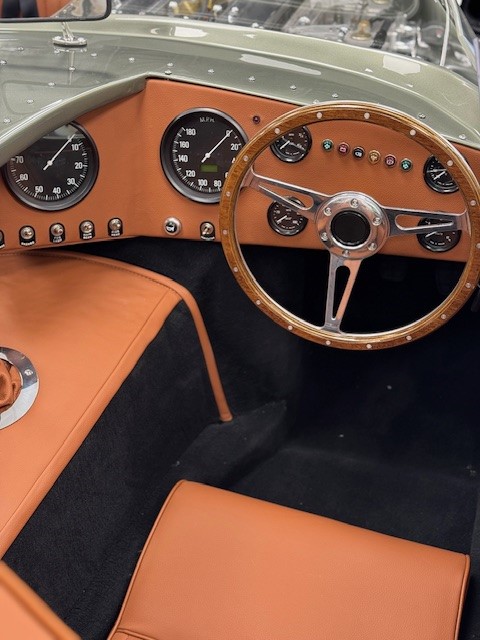

Details such as leather bonnet straps, period Lucas lighting, Dunlop‑pattern wheels and a flexiglass flyscreen reinforce the car’s heritage character. Interiors can be finished to bespoke standards, with Saddle Tan leather, period Smiths gauges and even custom entry‑assist doors available.

The AKD stands as a compelling tribute to one of Britain’s greatest racing cars—combining craftsmanship, authenticity and modern engineering in a way that makes the D‑Type legend genuinely accessible to today’s enthusiast.
